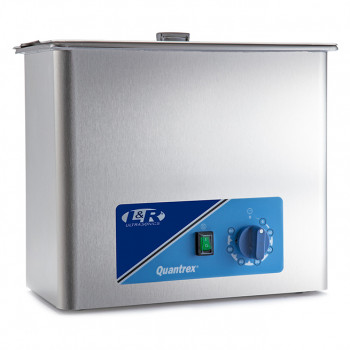

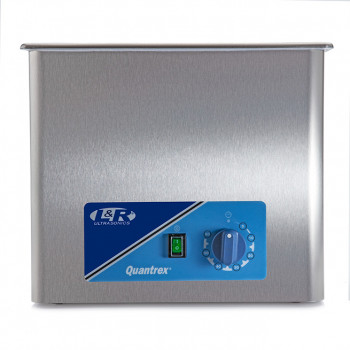

Quantrex® 210 w/Timer, Heat & Drain

The Quantrex 210 offers increased flexibility with its extra deep tank. The 6 in. deep tank allows for a larger volume of cleaning at one time. The Q210 is available with or without a heater. The Q210 delivers 43kHz of fixed cleaning power.

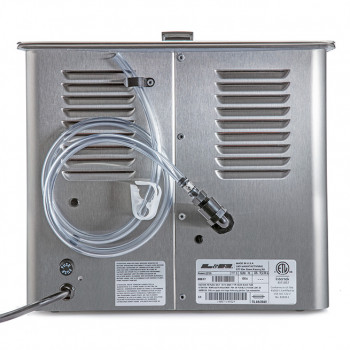

Constructed of stainless steel, the Quantrex 210 is the perfect machine for larger volume cleaning jobs.  Its 1.5 Gal. tank capacity and 6-inch-deep tank make the Q210 the machine of choice for larger items that need to be ultrasonically cleaned and processed. The Q210 comes standard with a 60-minute timer and multi-position drain.

Designed and Manufactured in the USA.

  • 30 month warranty offers years of dependable, worry-free cleaning
  • Optional heater heats solution to 145°F to assist in breaking down waxes, oils, and baked on debris and soils.
  • A variety of accessories are available including accessory baskets


Input Power 117V 60Hz:

135 Watts

335 Watts with Heat


1.2 Amps

2.9 Amps with Heat

Output/Cleaning Frequency: 43kHz
Tank Capacity:

1.51 Gal

5.7 L

Internal Tank Dimensions 11.8 x 6.0 x 6.0 in.
(L x W x H) 29.8 x 15.2 x 15.2 cm
Overall Dimensions: 12.8 x 7.0 x 11.0 in
(L x W x H) 32.4 x 17.8 x 27.9 cm
Stainless Steel Tank Cover Included
Additional Voltages Available
